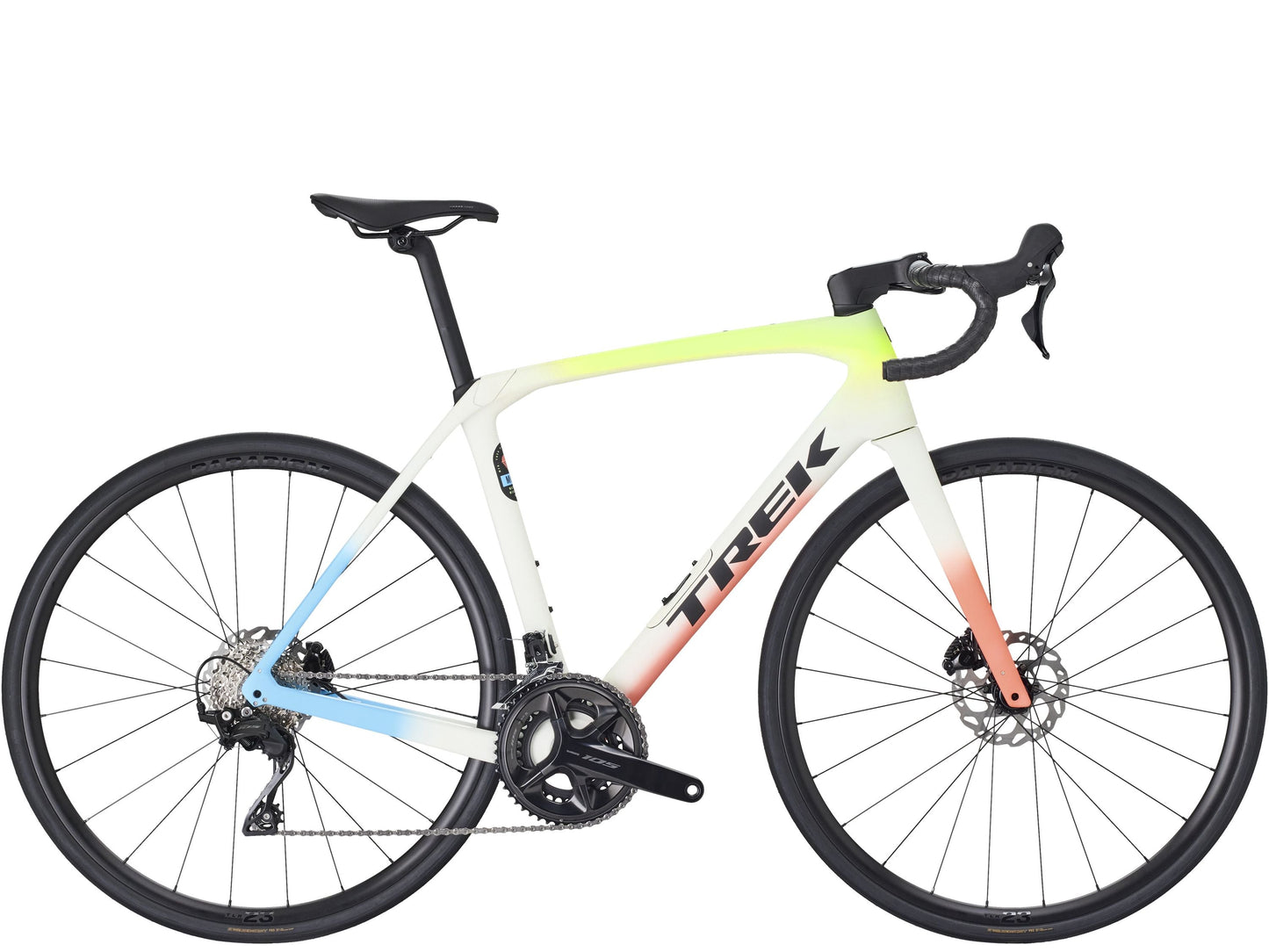

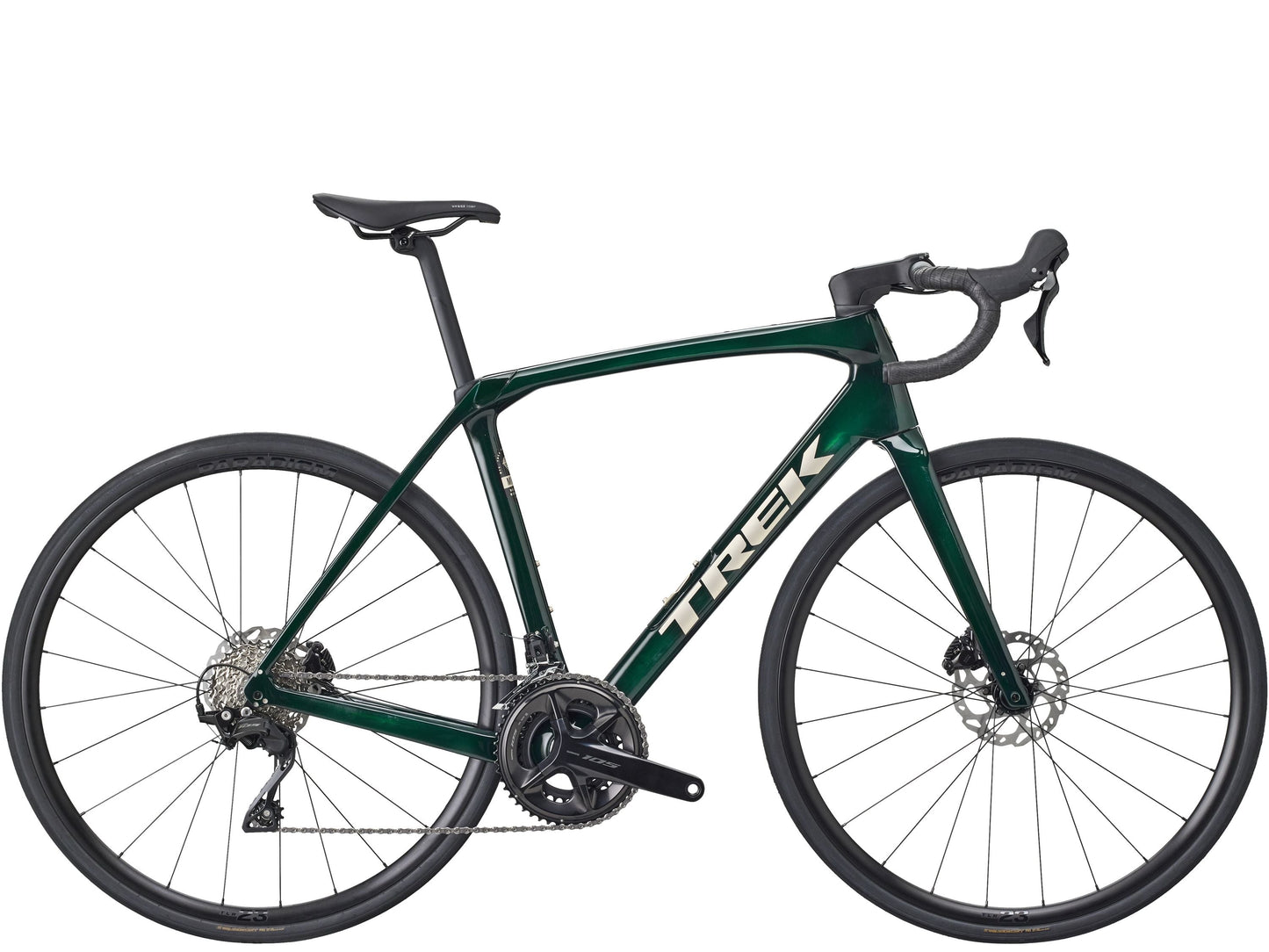

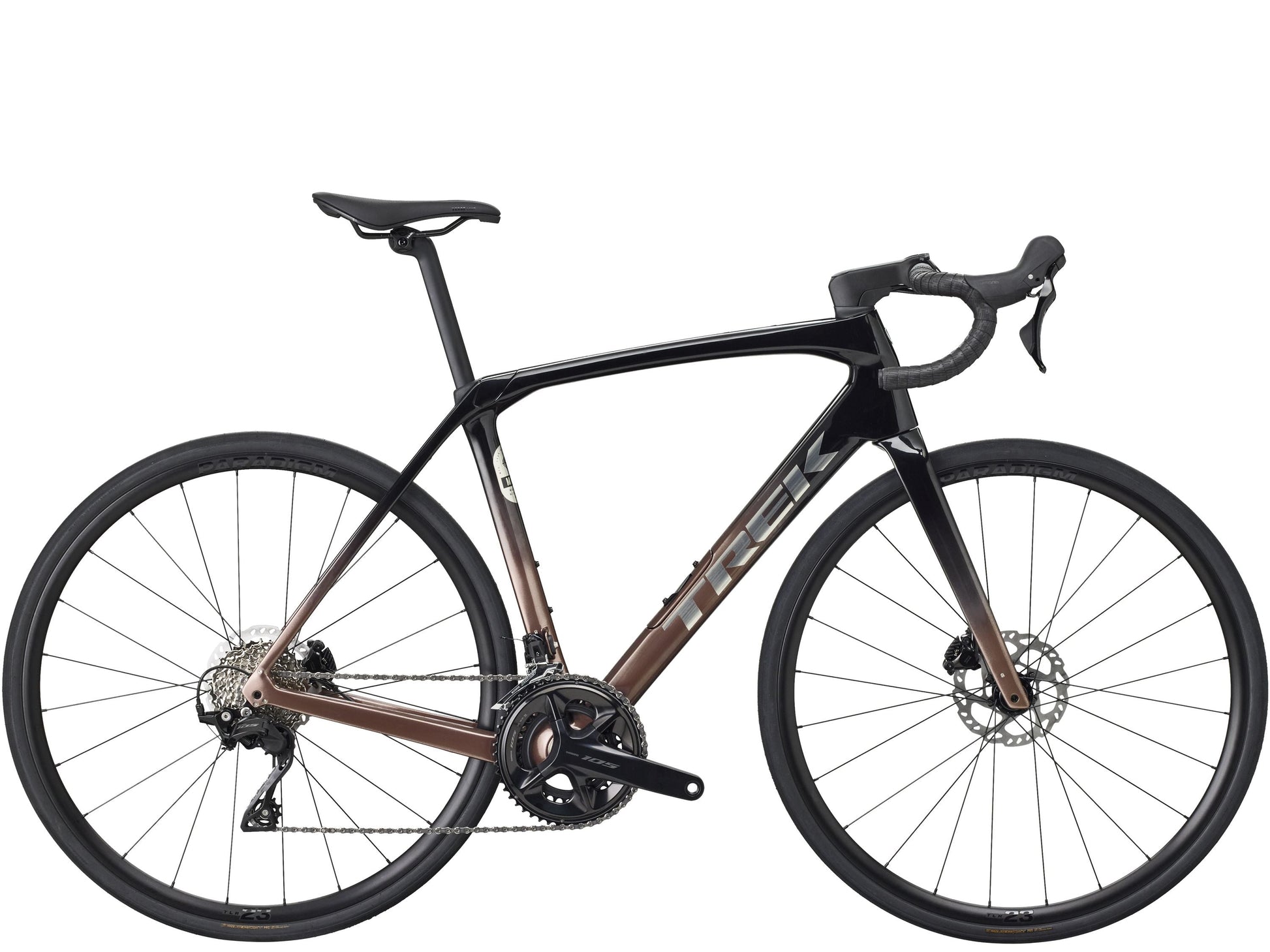

Trek Domane SL 5 Gen 4

Domane SL 5 is an endurance road bike ready to comfortably take on rough roads and long miles in comfort. It's crafted with a lightweight 500 Series OCLV Carbon frame speced with a reliable Shimano 105 drivetrain, and aluminum wheels and aluminum handlebars to balance performance and price.

The smooth advantage

Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.

Podium-topping speed

Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.

Lighter than ever

Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.

Versatile tire clearance

Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.

Internal storage

Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.

Refined integration

Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.

Fork	Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Wheel Front	Bontrager Paradigm Comp 23, Tubeless Ready, 23mm rim width, 100x12mm thru axle
Wheel Rear	Bontrager Paradigm 23, Tubeless Ready, 23mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
Tire	Bontrager Kwaremont Pro TLR, tubeless ready, folding bead, Race Dual-Compound, 120 tpi, 700x32mm
Tire Part	Bontrager TLR sealant, 6oz
Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever
Shifter	Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Front Derailleur	Shimano 105 R7100, braze-on, down swing
Rear Derailleur	Shimano 105 R7100, 36T max cog
Crank	Shimano 105 R7100, 50/34, 165mm length
Bottom Bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Brake Rotor	Shimano CL700, centerlock, 160mm
Saddle	Verse Short Comp, steel rails, 145mm width
Seatpost	KVF aero carbon seatpost, 20mm offset, 280mm length
Handlebar	Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Stem	Trek RCS Pro, -7 degree, 60mm length

Geometry Chart

B B Drop	8
Chainstay Length	42
Eff Top Tube	50.1
Frame Reach	36
Frame Size Number	44cm
Frame Stack	51
Head Angle	70.3°
Head Tube Length	9.5
Offset	5.3
Saddle Rail Height Max Short	60
Saddle Rail Height Max Tall	63
Saddle Rail Height Min Short	53.5
Saddle Rail Height Min Tall	56.5
Seat Tube	39
Seat Tube Angle	74.6°
Standover	65.7
Trail	6.6
Wheelbase	98.3
Wheel Size	700c
